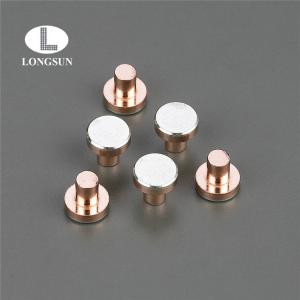

High Chemical Stability Silver Contacts Electrical Rivets Pure Moving Tips
1. Product name:
High Chemical Stability Silver Contacts Electrical Rivets Pure Moving Tips
Solid Electrical Contact Rivet:
Ag, Cu, AgNi, AgCdO, AgSnO
2. Product Features:
A) solid contact rivets have low resistance,high electrical conductivity.
B) Improve the contact rivet riveting performance.
C) Apply continuous automation production.
3. Product Specifications:
A) Certification: ISO9001, SGS,ROHS
B) Main material:Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc
C) Types: Solid rivet, Bimetal rivet, Tri-metal rivet, etc.
D) Shapes:Flat head, Round head
| item | head diameter
D(mm) | head thickness
T(mm) | layer diameter
S(mm) | shank diameter
d(mm) | Shank length
L(mm) | sphere radium
SR(mm) | mold ratio
8(°) |
specifi
-cation | 2.5 | 0.6.,08,1 | 0.3-0.4 | 1.2,1.5 | 1─2 | 4,6 | 9 |
| 3 | 0.8,1.0,1.2 | 0.35-0.5 | 1.5 | 6,8 |
| 3.5 | 1.5,2 | 1─3 |
| 4 | 1.0,1.2,1.5 | 2 | 8,10 |
| 4.5 | 2.0,2.5 |
| 5 | 1.0,1.2,1.5,2.0 | 0.4-0.6 | 2.5 | 10,15 |
| 5.5 | 2.5,3.0 |
| 6 | 3 | 15,20 |
| 6.5 | 1.2,1.5,2.0 | 0.5-0.7 | 3.0,3.5 |
| 7 | 3.5 | 20,25 |
| 8 | 4 |
head ancshank
coaxiality | ±0.1 | ±0.05 | S≤0.4+0.06
S＞0.4-0.06 | -0.12 | ±0.15 | ±0.2R | ±2 |
| head diameter(mm) | 2.5-3.0 | 3.0-6.0 | 6.0-8.0 |
| coaxiality | 0.12 | 0.15 | 0.2 |
4. Application
Widely used in low current devices, such as relays, times, auxiliary switches for household appliances, control switches, etc.
5. manufacturing process
6. Quality Control:
We test our electric contact before delivering,containing testing the Density,Hardness, Constitution Drigram. We make sure that all our electric contact are 100% good. All production process will be in strict accordance with ISO9001:2000 standard.
7. Packing and Delivery
Inside:Vaccum plastic bag
Outside:Carton according to customers’ request
Delivery: 10 Working Days
